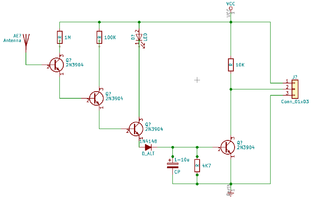

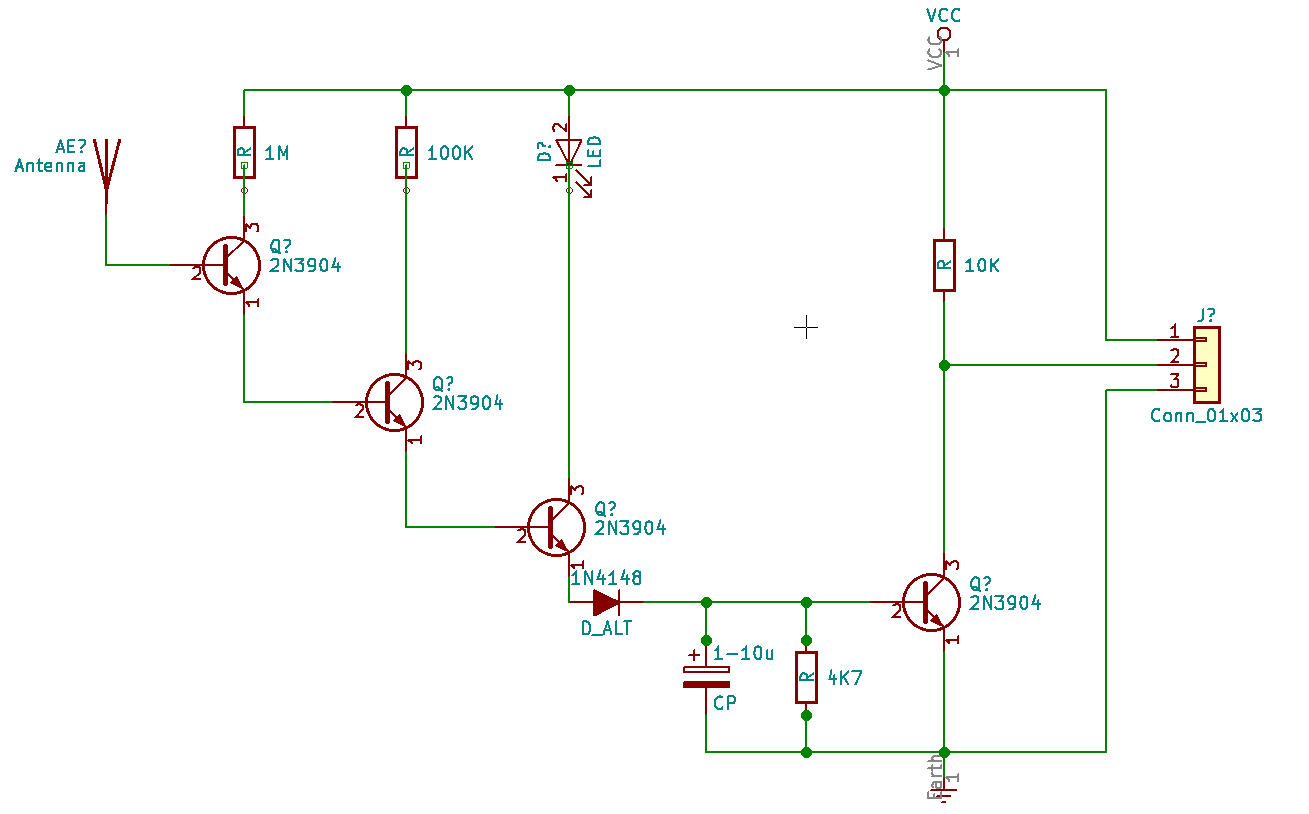

Suitable for 3.3V - 5V microcontrollers

The Antenna is just a wire looped around the mains wire being checked...

Output is the center pin on the 3-pin connector.
