File:Mains Detector.png

From The TinkerNow Wiki
Revision as of 15:35, 24 August 2019 by Tinker (talk | contribs)
(diff) ← Older revision | Latest revision (diff) | Newer revision → (diff)
Jump to navigation Jump to search

Original file ‎(1,309 × 814 pixels, file size: 14 KB, MIME type: image/png)

Summary

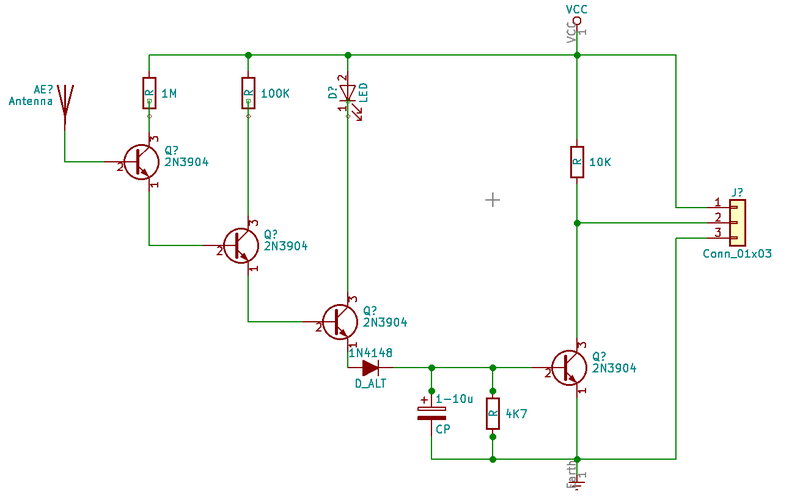

Suitable for 3.3V - 5V microcontrollers

The Antenna is just a wire looped around the mains wire being checked...

Output is the center pin on the 3-pin connector.
